HPMC in tile adhesives

1. Introduction

Tile adhesives are special adhesives used to adhere tiles, mosaics and other finishing materials, and are widely used in building decoration projects. Its main components include cement, fillers, additives and cellulose ethers. Among them, hydroxypropyl methylcellulose (HPMC), as a key additive, plays an important role in optimizing the performance of tile adhesives.

2. Basic Overview of HPMC

2.1 Chemical Composition of HPMC

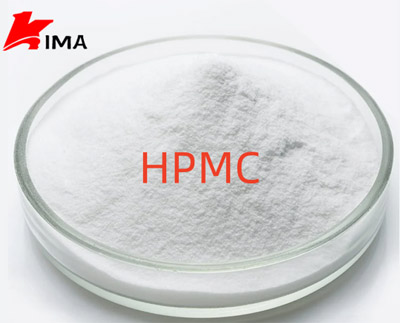

Hydroxypropyl methylcellulose (HPMC) is a non-ionic cellulose ether made from natural cotton cellulose through chemical treatments such as alkalization and etherification. Its molecular structure contains methoxy (-OCH₃) and hydroxypropyl (-OCH₂CHOHCH₃) substituents, which make it have good water solubility and stability.

2.2 Physical and Chemical Properties of HPMC

Water Solubility: It can be dissolved in cold water to form a transparent or translucent viscous solution.

Thickening: It can effectively increase the viscosity of tile adhesives and improve construction performance.

Water retention: prevent water loss too quickly, enhance cement hydration reaction, and improve adhesive strength.

Rheology: good thixotropy, so that the tile adhesive remains stable when standing, and is easy to spread during stirring or construction.

Thermal gelation: gel is formed at high temperature, and the dissolved state is restored after cooling, which helps to improve high temperature resistance.

3. The role of HPMC in tile adhesives

3.1 Improve water retention

One of the biggest roles of HPMC is to improve the water retention capacity of tile adhesives to avoid excessive water loss during construction, especially when constructing on high temperature or highly absorbent substrates (such as aerated concrete). HPMC can effectively prolong the hydration time of cement and improve bonding strength.

3.2 Enhanced bonding performance

The thickening effect of HPMC can increase the cohesion of tile adhesives, reduce sagging during vertical construction, and improve construction performance. In addition, the fiber structure of HPMC can form a network in the colloid, improve the bonding force, and make the tiles more firmly attached to the base surface.

3.3 Improve construction performance

HPMC can optimize the consistency and fluidity of tile adhesive, making it easier to apply and spread evenly, reducing problems such as hollowing and falling off. At the same time, its good thixotropy keeps the colloid stable when stationary and easy to spread during construction, improving construction efficiency.

3.4 Enhance durability

HPMC can improve the crack resistance and weather resistance of tile adhesives and reduce cracking problems caused by temperature changes. In addition, it can improve the anti-sagging performance of adhesives, making tiles more stable when constructed on vertical walls and extending their service life.

4. Factors affecting HPMC performance

4.1 Viscosity

The viscosity of HPMC has a significant effect on the construction and adhesion of tile adhesives. High-viscosity HPMC can provide stronger water retention and better anti-sagging performance, but may affect the fluidity of construction; low-viscosity HPMC has better fluidity but relatively low water retention. The viscosity range of HPMC commonly used in tile adhesives is generally 40,000–100,000 mPa·s (2% aqueous solution, measured by NDJ-1 rotational viscometer).

4.2 Degree of Substitution (DS) and Molar Substitution (MS)

The degree of substitution (methoxy and hydroxypropyl substitution rate) of HPMC determines its water solubility, thickening ability and thermal gel properties. A higher degree of substitution generally increases its water solubility and water retention capacity, while affecting its temperature resistance.

4.3 Particle Fineness

The fineness (particle size) of HPMC affects its dispersibility and dissolution rate in tile adhesives. Finer particles dissolve faster and are more evenly distributed, which helps improve the workability and uniformity of tile adhesives. It is generally recommended to use HPMC powder of 80 mesh or finer to ensure optimal performance.

5. Amount of HPMC in Tile Adhesives

The amount of HPMC is generally controlled between 0.2%–0.6% of the mass of the dry powder of the tile adhesive. Too little dosage may lead to insufficient water retention and adhesion, while too much dosage may affect construction fluidity and increase costs. Therefore, in practical applications, the amount of HPMC added should be optimized according to the formula and construction requirements of tile adhesive.

6. Use of HPMC with other additives

HPMC is usually used in combination with other additives (such as latex powder, lignin sulfonate, starch ether, etc.) to optimize the performance of tile adhesives. For example:

Latex powder: improve flexibility and crack resistance, and enhance adhesion.

Starch ether: improve construction performance and improve anti-sagging performance.

Lignin sulfonate: enhance dispersibility and improve fluidity.

Reasonable combination of HPMC and other additives can improve the overall performance of tile adhesives and meet the needs of different construction environments.

7. Advantages of HPMC in tile adhesives

Improve construction performance: good rheological properties and water retention make tile adhesives easier to construct.

Enhance adhesion: optimize cement hydration and improve the bonding strength between tiles and substrates.

Prevent hollowing and falling off: reduce the decrease in adhesion caused by rapid water loss and improve construction quality.

Improve anti-sagging: reduce tile slippage during vertical construction and improve construction stability.

Environmental protection and safety: HPMC is non-toxic and harmless, meets the requirements of green building materials, and is safe and environmentally friendly.

As an important additive in tile adhesives HPMC plays an important role in improving water retention, enhancing bonding performance, and improving construction performance. Its performance is affected by factors such as viscosity, degree of substitution and particle fineness. Reasonable selection and matching of HPMC can significantly optimize the quality and construction effect of tile adhesives. With the development of the construction industry, the application of HPMC in tile adhesives will become more and more extensive, providing strong support for efficient and environmentally friendly building adhesive materials.
