Effect of Hydroxypropyl Methylcellulose on Thermal Insulation Mortar and Formula Reference

Introduction: Hydroxypropyl methylcellulose (HPMC) is a cellulose-based derivative widely used in construction and building materials, particularly in thermal insulation mortars. It is a water-soluble polymer that imparts various properties to mortars, including workability, adhesion, and improved thermal insulation. Thermal insulation mortars are typically used in building facades, roofs, and other structures to reduce energy consumption by minimizing heat transfer between indoor and outdoor environments. The performance of these mortars, especially their thermal insulation capabilities, can be significantly enhanced by incorporating HPMC into the mix.

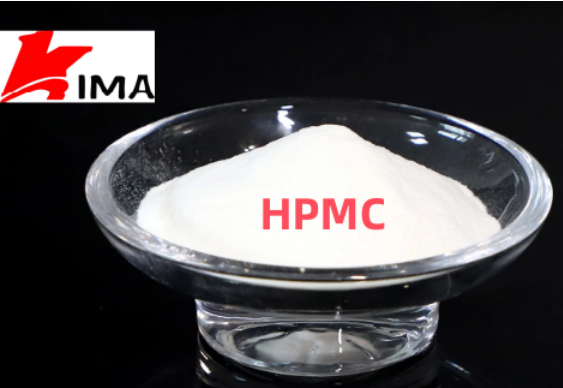

Properties of Hydroxypropyl Methylcellulose (HPMC): HPMC is a versatile material known for its non-ionic nature, ease of application, and high water retention. It functions as a thickener, binder, and stabilizer in mortar formulations. Its unique characteristics include:

• Water Retention: Improves workability and prevents the premature setting of the mortar by maintaining adequate moisture levels.

• Adhesion: Enhances the bond strength of the mortar to substrates, particularly in the case of insulation panels.

• Viscosity Modification: Adjusts the flow properties of the mixture, making the mortar easier to apply.

• Thermal Insulation Enhancement: In certain formulations, HPMC can increase the ability of the mortar to retain heat or minimize heat transfer due to its structure and composition.

When added to thermal insulation mortars, HPMC can play an important role in improving their effectiveness by influencing the mortar's thermal conductivity, which is essential for minimizing heat loss or gain.

Impact of HPMC on Thermal Insulation Mortars: The role of HPMC in thermal insulation mortars is multi-faceted and can affect various properties:

• Thermal Conductivity: HPMC can help improve the thermal insulation properties of mortars by promoting the formation of a microstructure that limits the conduction of heat. This is mainly due to its ability to hold water within the mortar, which helps maintain an air-tight structure and reduces the chances of heat transfer through convection or conduction.

• Workability: As a thickening agent, HPMC increases the workability of the mortar, allowing for easier application and spreading. This can be particularly advantageous in large-scale applications where ease of application is crucial.

• Adhesion to Substrate: The adhesive properties of HPMC improve the bonding strength of the thermal insulation mortar to various substrates, such as concrete, brick, or insulation boards. This ensures that the mortar stays intact, enhancing both the thermal insulation and durability of the structure.

• Water Retention: The water retention ability of HPMC helps maintain the required moisture levels in the mortar during curing, which is essential for achieving optimal strength and insulation performance. Without adequate water retention, the mortar could dry out too quickly, affecting its final properties.

• Durability: HPMC-enhanced mortars tend to exhibit better durability compared to conventional mortars. The addition of HPMC can improve resistance to cracking and shrinkage, which contributes to the longevity of the thermal insulation system.

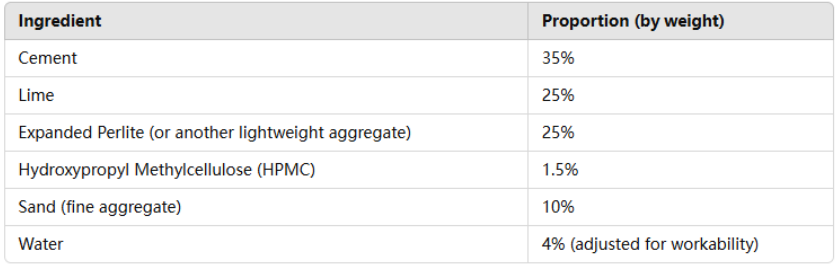

Formula Reference for Thermal Insulation Mortar with HPMC: Below is a sample formula for a thermal insulation mortar incorporating HPMC, which highlights the key ingredients and their proportions.

Cement and lime form the binding matrix of the mortar, providing structural integrity and improved adhesion to substrates.

Expanded Perlite or another lightweight aggregate is included to enhance the thermal insulating properties of the mortar. It lowers the overall density of the mortar, which improves its ability to resist heat flow.

HPMC is added in small quantities (around 1.5% by weight), which can enhance the workability, water retention, and adhesion properties, without significantly altering the overall composition or thermal properties of the mortar.

Fine Sand is used to adjust the texture of the mortar, making it suitable for application in various thicknesses.

This formula can be adjusted based on specific requirements, such as the desired thermal conductivity, consistency, or strength of the final product.

Impact of HPMC on Specific Mortar Properties:

• Thermal Conductivity: The addition of lightweight aggregates like expanded perlite and the polymeric structure of HPMC contribute to a reduction in the overall thermal conductivity of the mortar. Studies show that such modified mortars can achieve a thermal conductivity in the range of 0.05–0.15 W/mK, which is suitable for insulating applications.

• Mechanical Strength: While HPMC can enhance the workability and adhesion properties of the mortar, it may slightly reduce compressive strength due to the increased water retention and modification of the microstructure. However, this reduction is typically minor and is compensated for by the improvement in thermal insulation properties.

• Water Retention and Curing: One of the significant advantages of incorporating HPMC in mortar is its ability to retain water during curing. This is particularly beneficial in hot climates where rapid evaporation can impair the curing process, leading to weaker mortars. The water retention property allows the mortar to cure evenly, leading to better final strength and reduced shrinkage cracking.

• Crack Resistance: HPMC-modified mortars tend to exhibit better crack resistance due to improved cohesion and flexibility. This is important for thermal insulation mortars, as cracking could lead to the degradation of insulation properties over time.

The incorporation of HPMC in thermal insulation mortars offers several advantages, including improved workability, water retention, adhesion, and thermal insulation performance. While it may slightly reduce compressive strength, the overall benefits, especially in terms of thermal efficiency and durability, make it a valuable additive in the formulation of modern insulation systems. The development of such advanced mortars is critical for improving the energy efficiency of buildings and reducing the environmental impact associated with heating and cooling. By carefully balancing the composition of the mortar, HPMC can be utilized effectively to enhance both the performance and longevity of thermal insulation systems.
